Connecteurs solaires MC4 25A série EW PV4

Connecteurs solaires MC4 25A série EW PV4

Type de broche

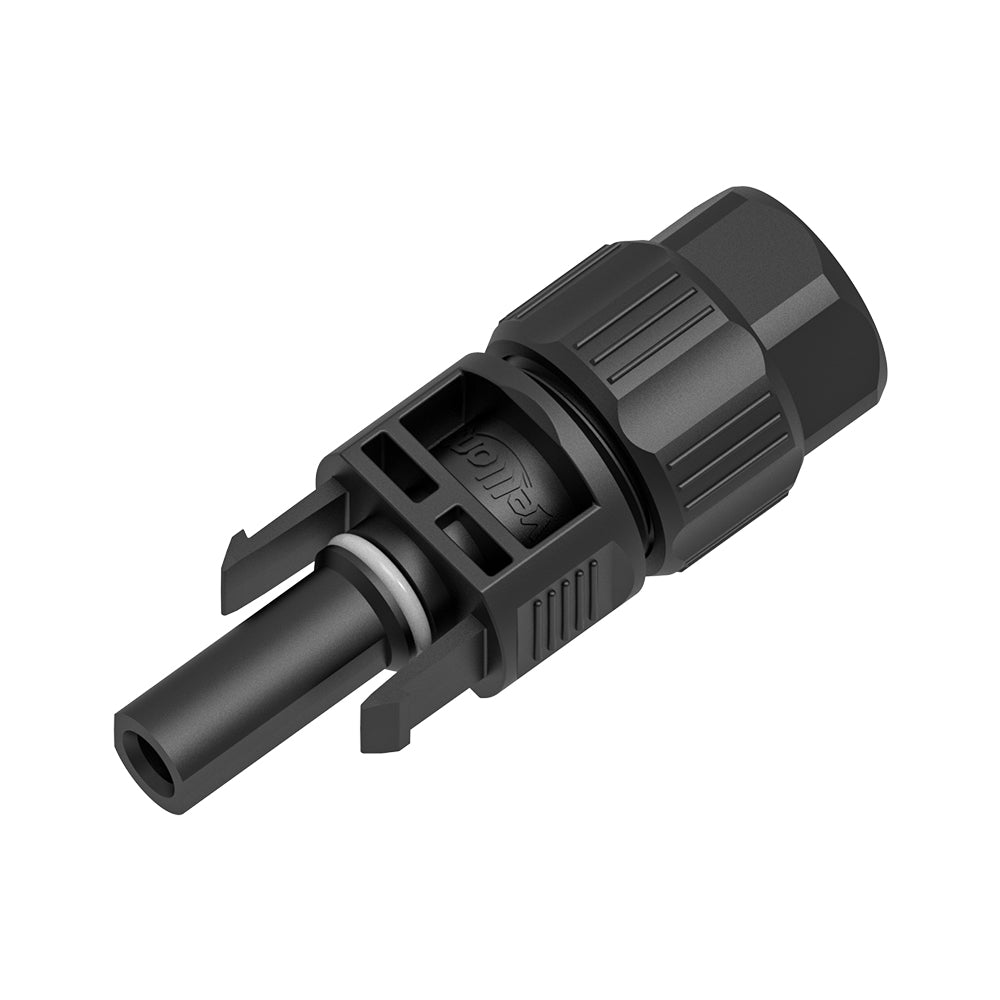

Type de prise

Connecteur étanche photovoltaïque EW PV4, anti-oxydation, plus stable. Alliage de cuivre étamé, les performances conductrices sont plus solides et plus stables.

Courant de fonctionnement : 1000V DC/1500V DC
Spécifications de câblage : UL 14AWG:15A/UL 12AWG:20A/UL 10AWG:30A/UL 8AWG: 50A; TUV 2.5mm²:25A/TUV 4mm²:35A/TUV 6mm²: 45A/TUV 10mm²:65A
Tension de tenue: 8000V DC
Tension de tenue aux impulsions: 16KV(1.2/50us)
Résistance de contact : 0.5mΩ Max
Impédance d’isolation : 500mΩ Min
Indice de protection : IP68(1M/2H)
Obtenir un devis gratuit

Details

Product Specifications/3D File/Product Certificate

Contact Us: Sales20@weichatsz.com

Qualité

9+ Standard Quality Tests

Expédition

DHL\UPS\Fedex\EMS\China Post\HongKong Post

Emballer

Carton / Plastic Box

Delivery

Delivery Time < 15 days

FAQ

1. Q: Which countries are E-Weichat's Waterproof Connectors suitable for?

A: Both applicable and available worldwide.

2. Q:How to order samples? Can your Waterproof Connectors be customized?

A: Certainly. We allow OEM and ODM. Regarding samples, in order to ensure that the selected product is suitable for your application, it is best to test samples before purchasing in bulk. As there is no minimum order quantity for most of our products, samples can be purchased in any quantity. Free sample options are available on certain product lines, please contact our sales team for more information.

3. Q: What is the delivery time of your products? Do I have to pay for shipping?

A: Yes, we do not provide free shipping. Regarding delivery time, regular delivery time: formal order: 5-7 days, sample order: 1-3 days; it may also be shortened according to our inventory situation, or extended during special holidays. We will always try to deliver as quickly as possible. Warm reminder: Lunar New Year is a very special holiday in China, which may cause production abnormalities for up to 1 month, and delivery times will be longer than at this time of year. We recommend that you place your order or make purchasing plans in advance to avoid possible delays.

Afficher tous les détails

  • OEM / ODM Customization

    Laser-etched LOGO branding, custom thread specifications, and bespoke bulk packaging for volume orders.

  • Certified IP67 / IP68 Protection

    Strict quality assurance providing dynamic strain relief, anti-vibration locking, and continuous immersion performance.

  • Fast Spec Sheet & Sampling

    Dedicated technical support with rapid sample turnaround and full engineering documentation for your project needs.

Industrial Interconnects

Data & Network

Engineered for automated architectures, E-Weichat industrial data connectors enable seamless, real-time routing across diverse operating networks. This series acts as a ruggedized bridge between legacy systems and modern controls, delivering zero attenuation and stable signal transmission under severe environments.

Automation & Robotics

Robotics

Tailored for dynamic robotic frameworks, this series provides a secure, one-second quick-lock interconnect system designed to ensure uninterrupted power and precise signal distribution. Built with certified up to IP68 waterproof protection, these compact connectors withstand continuous vibration and demanding factory settings, making them the ideal choice for collaborative robots (cobots), automated guided vehicles, and smart Industrial IoT (IIot) environments.

Medical & Specialized Equipment

Medical Devices

Panel Mount Power Connector for Medical Solutions is a specialized interconnect designed for safe, reliable, and high-performance power delivery in medical devices. These connectors ensure secure mounting on equipment panels while meeting stringent medical safety and regulatory standards.

Simplified Field Installation & OEM Customization

  • Cable Connector Series

    Representative example shown above.

    • 4-Step Quick Assembly: Tool-free screw-locking terminals for rapid, vibration-proof field wiring.

    • OEM/ODM Branding: Custom laser-etched LOGO branding on the connector shell, custom thread specs, and bulk packaging for volume orders.

  • Junction Box Series

    Representative example shown above.

    • Simplified Field Wiring: Easy-access internal terminal block with integrated PG glands for complete IP68 sealing.

    • OEM/ODM Branding: Support custom laser-engraved LOGO directly on the enclosure cover and tailored cable hole sizes for volume orders.
